Storage & scalability

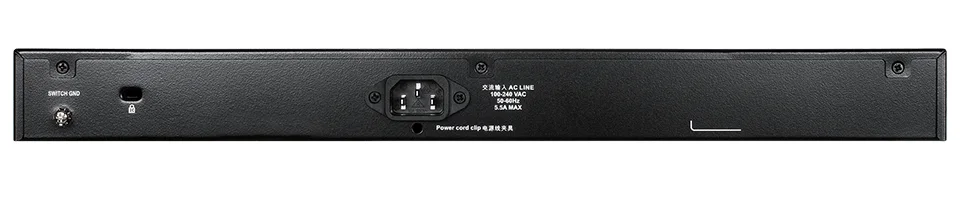

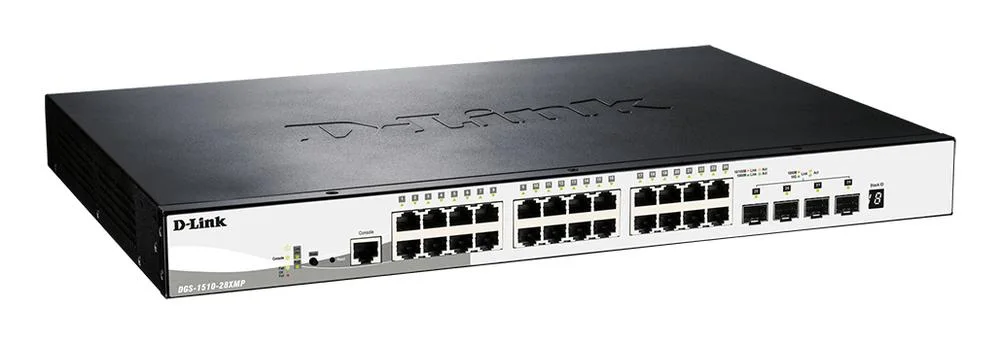

Switch D-Link DGS-1510-28XMP-E 28 ports
The explicitly indicated storage centralizes the applications and files in the configuration.
Stockage: 0 ? 95 %
Connectivity and environment
The connections and system explicitly indicated complete the integration of the NAS into its environment.
- Network: Ethernet
Technical characteristics
| Apprentissage automatique des adresses MAC | Yes |
|---|---|
| Authentification | Adresse MAC, Port |
| Budget PoE total | 370 W |
| Switching capacity | 128 Gbit/s |
| Certifications | CE, FCC, C-Tick, VCCI, BSMI, CCC |
| Code SA | 85176990 |
| Connecteur fibre optique | SFP+ |
| Maximum power consumption | 436,3 W |
| Heat dissipation | 1 487,78 BTU/h |
| Débit | 95.24 Mpps |
| Stackable | Yes |
| Empilement physique | Jusqu?à 6 unités |
| Empilement virtuel | jusqu?à 32 unités |
| Fonctionnalités VLAN | VLAN étiqueté, VLAN basé sur le protocole |
| Fonctions DHCP | Serveur DHCP, Client DHCP |
| Frequency | 50 ? 60 Hz |
| Full Duplex | Yes |
| Operating humidity | 0 to 95 % |
| Humidité de stockage | 0 ? 95 % |
| IGMP | Yes |
| Access Control List (ACL) | Yes |
| Mirroring ports | Yes |
| Rack mounting | Yes |
| Noise level | 56,9 dB |
| Nombre d?emplacements SFP+ | 4 |
| Nombre de files d?attente | 8 |
| Nombre de ports Ethernet RJ-45 | 24 |
| Number of PoE ports | 24 |
| Number of fans | 2 |
| Number of VLANs | 4094 |
| Network standards | IEEE 802.1D, 802.1Q, 802.1p, 802.1s, 802.1w, 802.1x, 802.3, 802.3ab, 802.3ad 802.3ae, 802.3af, 802.3at, 802.3x |
| PoE | Yes |
| Support 10G | Yes |
| Prise en charge de la multidiffusion | Yes |
| Prise en charge des VLAN | Yes |
| Depth | 308 mm |
| Puissance par port PoE | 30 W |
| Règles ACL | 768 |
| Sauvegarde et retransmission | Yes |
| Security | cUL, CB |
| Table d?adresses MAC | 16384 entrées |
| Tampon de paquets | 1,5 Mo |
| Technologie de câblage Ethernet cuivre | 10BASE-T, 100BASE-TX, 1000BASE-T |
| Operating temperature | -5 to 50 °C |
| Storage temperature | -20 to 70 °C |
| AC Input Voltage | 100 ? 240 V |
| Trames jumbo prises en charge | 9216 octets |
| Type de port | Gigabit Ethernet (10/100/1000) |
